| مكان المنشأ: | خبي، الصين |
|---|---|
| اسم العلامة التجارية: | Yuntong |
| إصدار الشهادات: | CE , SGS |
| رقم الموديل: | يت-F188 |
| الحد الأدنى لكمية: | 10 متر مربع |
| تفاصيل التغليف: | حزمة فيلم لكل قطعة ، عدة قطع معبأة في 1 كرتون |
| وقت التسليم: | 5-8 أيام عمل |
| شروط الدفع: | / تي تي، ويسترن يونيون، بايبال |
| القدرة على العرض: | 300 متر مربع/أسبوع |
| قطر الكابل: | من 1.2 ملم إلى 3.2 ملم أو أكبر | الإنشاءات: | 1×7، 7×7، 7×19 |
|---|---|---|---|
| جودة: | أفضل | اتجاه شبكة: | أفقي ، عمودي |
| اسم المنتج: | الشبكة الحديدية من الفولاذ المقاوم للصدأ | ميزة: | شبكة حبل X-tend |
| طلب: | الضميمة الحيوانية | نمط نسج: | نسج عادي |
| إبراز: | 316 stainless steel garden fence net,cable mesh football field protection,stainless steel rope net with warranty,cable mesh football field protection,stainless steel rope net with warranty |
||

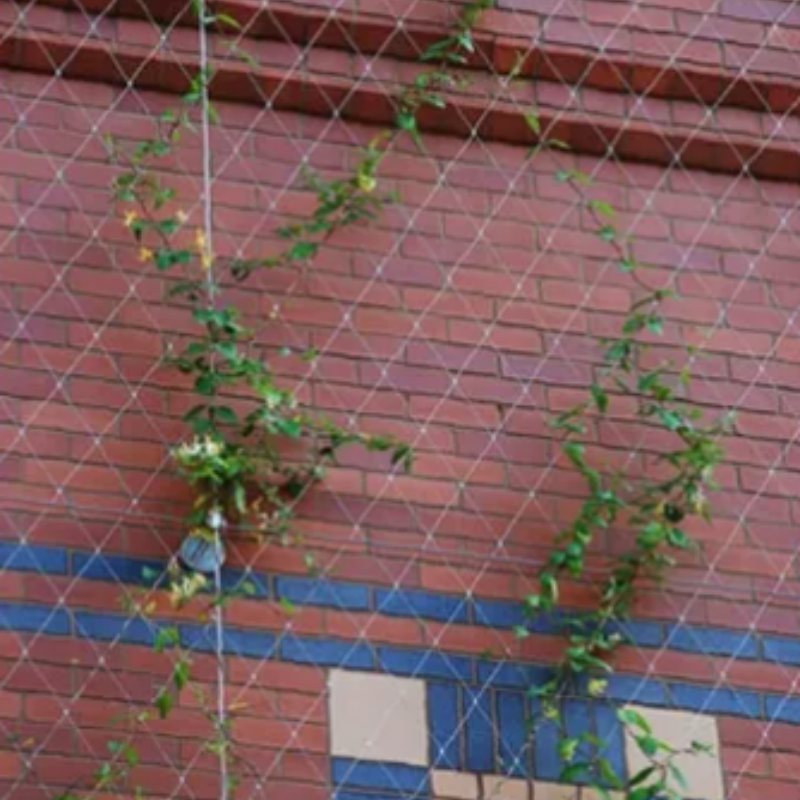

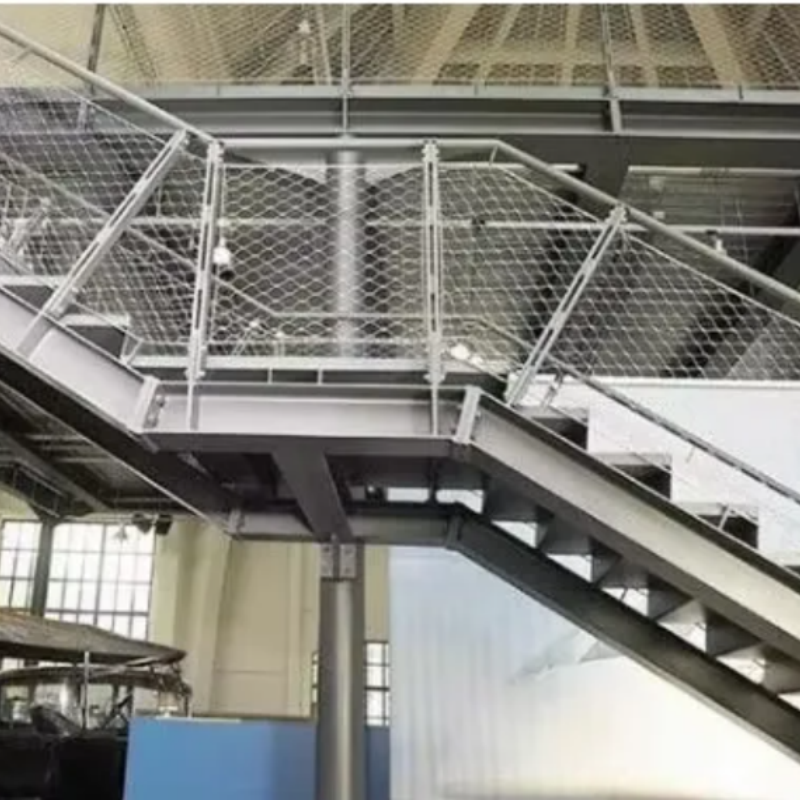

316 Stainless Steel Rope Net for Garden Fence Fall Protection Football Field Cable Mesh
316 Stainless Steel Rope Net are the great projects of humans. And a suspension bridge is made up of three components: deck (the load-bearing portion), railing and suspension cables. The railings of many suspension bridges are made of stainless steel rope mesh, namely stainless steel suspension bridge railing mesh. Why stainless steel rope mesh can play so important role? Because it has many incomparable features: light weight and soft.
Stainless steel suspension bridge rope mesh is light, making the hands if you touch it.
Stainless Steel Rope Net Specifications :
|
Mesh Eye Size (Opening) |
1.2mm(3/64) (7 x 7 ) |
1.6mm(1/16) (7 x 7 ) |
2.0mm(5/64) (7 x 7 ) |
2.4mm(3/32) (7 x 7 ) |
3.2mm(1/8) (7 x 19 ) |
| 20 x 35mm | YT-1235 | ||||
| 25 x 42mm | YT-1225 | YT-1625 | |||
| 30 x 52mm | YT-1230 | YT-1630 | YT-2030 | ||
| 35 x 60mm | YT-1235 | YT-1635 | YT-2035 | ||
| 38 x 66mm | YT-1238 | YT-1638 | YT-2038 | YT-2438 | |
| 40 x 69mm | YT-1240 | YT-1640 | YT-2040 | YT-2440 | YT-3040 |
| 50 x 86mm | YT-1250 | YT-1650 | YT-2050 | YT-2450 | YT-3050 |
| 60 x 104mm | YT-1260 | YT-1660 | YT-2060 | YT-2460 | YT-3060 |
| 70 x 120mm | YT-1270 | YT-1670 | YT-2070 | YT-2470 | YT-3070 |
| 76 x 131mm | YT-1276 | YT-1676 | YT-2076 | YT-2476 | YT-3076 |
| 80 x 138mm | YT-1280 | YT-1680 | YT-2080 | YT-2480 | YT-3080 |
| 90 x 154mm | YT-1290 | YT-1690 | YT-2090 | YT-2490 | YT-3090 |
| 100 x 173mm | YT-12100 | YT-16100 | YT-20100 | YT-24100 | YT-30100 |
| 120 x 206mm | YT-12120 | YT-16120 | YT-20120 | YT-24120 | YT-30120 |
Customized:
Frame Systems
Stainless steel wire rod, round tube, square tube and other shape tube.
Rectangular panel, trapezoid panel, round shape panel and other special shape paneld netting
Colored Finished
Black oxide.
Colourful ferrules assembled with standard stainless steel wire rope.
Colourful stainless steel wire rope assembled with standard ferrules.
| SS304 | (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035 |
| SS316 | (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5 |
| SS316L | (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0 |
