| مكان المنشأ: | خبي، الصين |
|---|---|
| اسم العلامة التجارية: | Yuntong |
| إصدار الشهادات: | CE |
| رقم الموديل: | YT-F-2075 |
| الحد الأدنى لكمية: | 10 متر مربع |
| الأسعار: | USD 2-50 |
| تفاصيل التغليف: | قماش مقاوم للماء أو صندوق كرتوني أو علبة خشبية |
| وقت التسليم: | 5-8 أيام عمل |
| شروط الدفع: | / تي تي، ويسترن يونيون، بايبال |
| القدرة على العرض: | 300 متر مربع/أسبوع |
| اسم المنتج: | X تيند حبل صافي | الكلمة الرئيسية: | شبكة حبل من الفولاذ المقاوم للصدأ |
|---|---|---|---|
| نوع المنتج: | X-tend سلك حبل شبكي | قطر حبل الأسلاك: | 2.0 ملم، 2.5 ملم، 3.0 ملم |
| حجم ثقب الشبكة: | من 50 ملم إلى 100 ملم أو أكبر | نوع الشبكة: | سلس متماسك |
| مادة: | SS304 ، SS316 | حجم الشبكة: | مخصص |
| إبراز: | SS304 stainless steel climbing net,X Tend rope plant support,decorative cable mesh for plants,X Tend rope plant support,decorative cable mesh for plants |
||

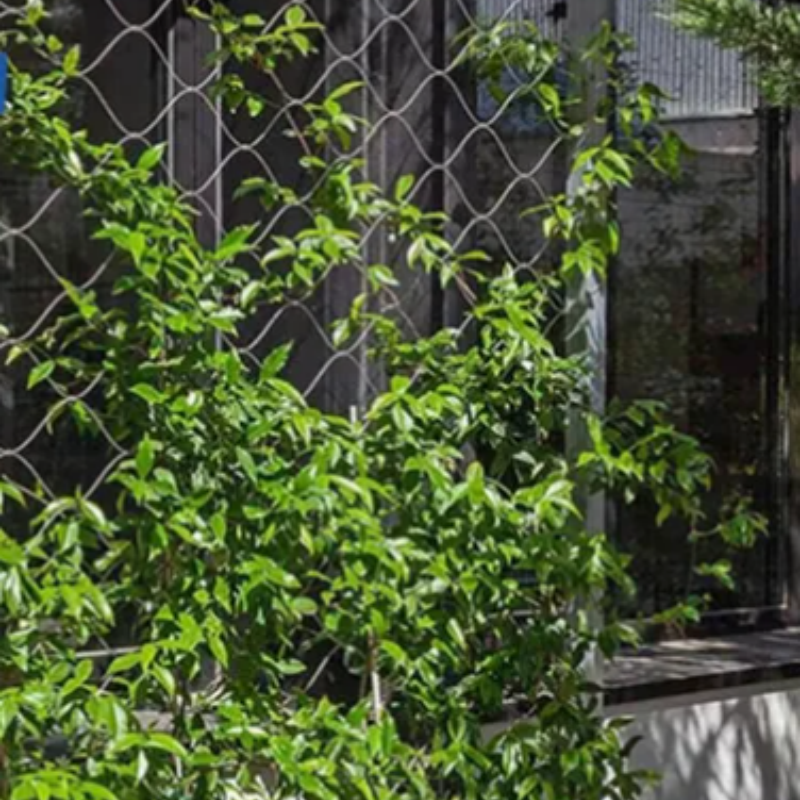

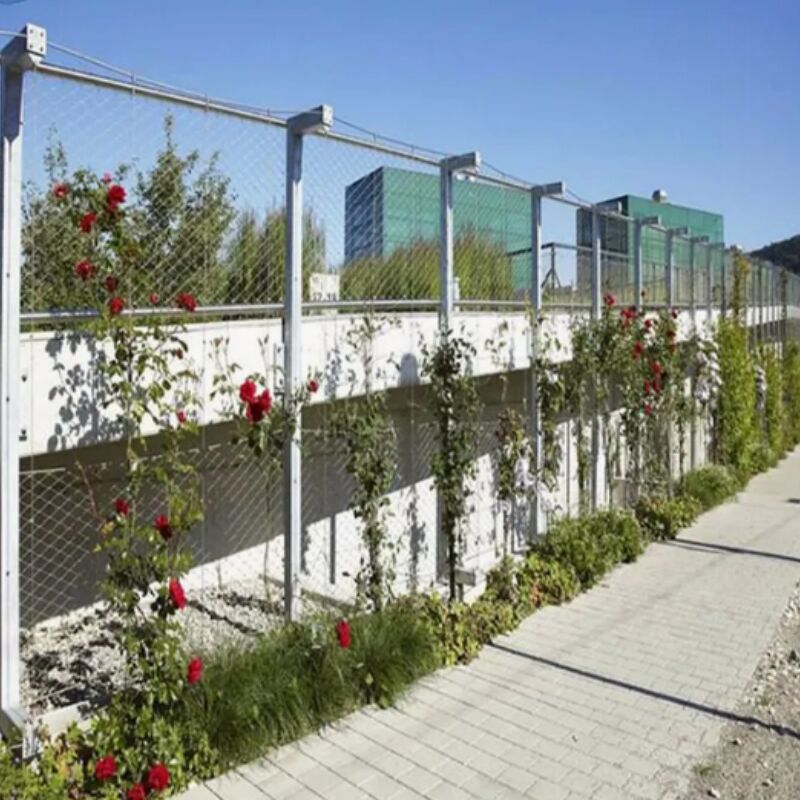

SS304 Stainless Steel X Tend Rope Net Decorative Plants Climbing Support
The product features of Stainless Steel X Tend Rope Net
Material: stainless steel 304, 304L, 316, 316L.
Ferrule material: tinned copper, nickel plated copper, stainless steel.
Surface treatment: primary color or black oxide finish.
Cable diameter: 1.0-5.0 mm.
Mesh opening sizes: 25-200 mm.
Mesh opening angles: 20°, 30°, 60°, 70°, 75°. Mesh aperture at 60° as standard opening.
Ordering: specific to order, according to the project.
Construction of wire cable: 7 × 7, 7 × 19.
Connection: ferrule or knotted.
The Stainless Steel X Tend Rope Net is rhombus mesh, has excellent flexible performance, virtually
indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow, hurricane.
The stainless steel wire rope woven mesh material is used high quality stainless steel wire cable, the
stainless steel grade includes AISI 304 or AISI 316 material group.
Brief Intructions :
| Product Name | Architectual Facade Cladding |
| Mesh Style | X-tend Mesh |
| Mesh Type | Seamless Ferruled |
| Ferrules | Stainless Steel Ferrules or Aluminum Ferrules |
| Application | Architectual Facade Cladding |
| Material | SS304 , SS316 , SS316L , |
| Wire Rope | 2.0 mm , 2.5 mm , 3.0 mm |
| Mesh Aperture | 50 x 50 mm , 60 x 60 mm , 75 x 75 mm , 100 x 100 mm |
| Mesh Angle | 60 Degree |
| Mesh Orientation | Horizontal or Vertical |
Features of Stainless Steel X Tend Rope Net
The pliable, high-strength mesh system provides architects and designers with the scope to create solutions for many different applications. It is UV and weather resistant.Webnet mesh can also be supplied in a black anodised or a galvanised finish.
Our technical support team is available to offer full design and technical advice on projects of any scale and complexity.We provides balustrade assemblies with the cable mesh preinstalled on stainless steel frames. Webnet Mesh is available in rectangular or rhomboid form in different sizes and mesh widths. Special assembly kits make installation easy.
