| مكان المنشأ: | هيبي |
|---|---|
| اسم العلامة التجارية: | Yuntong |
| إصدار الشهادات: | CE , SGS |
| رقم الموديل: | yt--f |
| الحد الأدنى لكمية: | 10 متر مربع |
| تفاصيل التغليف: | حزمة فيلم لكل قطعة ، عدة قطع معبأة في 1 كرتون |
| وقت التسليم: | 5-8 أيام العمل |
| شروط الدفع: | T/T ، Western Union ، PayPal |
| القدرة على العرض: | 300 متر مربع/أسبوع |
| اسم المنتج: | الفولاذ المقاوم للصدأ من الفولاذ المقاوم للصدأ شبكة سلك الحبل الحبل | حبل الأسلاك: | من 1.2 مم إلى 4.0 مم |
|---|---|---|---|
| حبل الإنشاءات: | 7 × 7 ، 7 × 19 ، 1 × 19 | انتهى: | حمام بالموجات فوق الصوتية / أكسيد أسود |
| اتجاه شبكة: | أفقي ، عمودي | مادة: | الفولاذ المقاوم للصدأ 304 ، 316 ، 316L |
| شكل شبكة: | المعين ، الماس | طلب: | الضميمة الحيوانية، الضميمة القرد، الضميمة النمر، الخ |
| إبراز: | stainless steel zoo wire mesh,hand-woven ferruled cable mesh,aviary stainless steel rope mesh,hand-woven ferruled cable mesh,aviary stainless steel rope mesh |
||

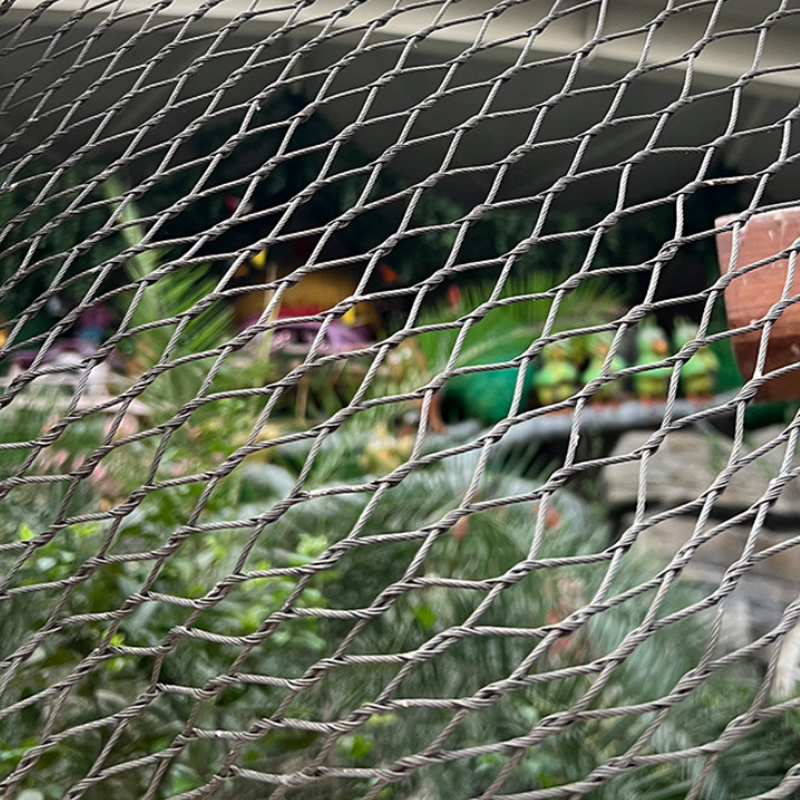

Stainless Steel Hand-Woven Ferruled Cable Wire Rope Mesh
The Zoo Wire Mesh is manufactured in the standard diameters 1.0 mm, 1.5 mm, 1.6mm, 2.0 mm, 3.0 mm and 3.2mm. Mesh width of 25 to 200 mm (or bigger) are possible depending on cable diameter.
Rope Mesh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316.
Mesh connections (ferrules) are available in highly aesthetic stainless steel for premium applications or where resistance to corrosion is a driving consideration.

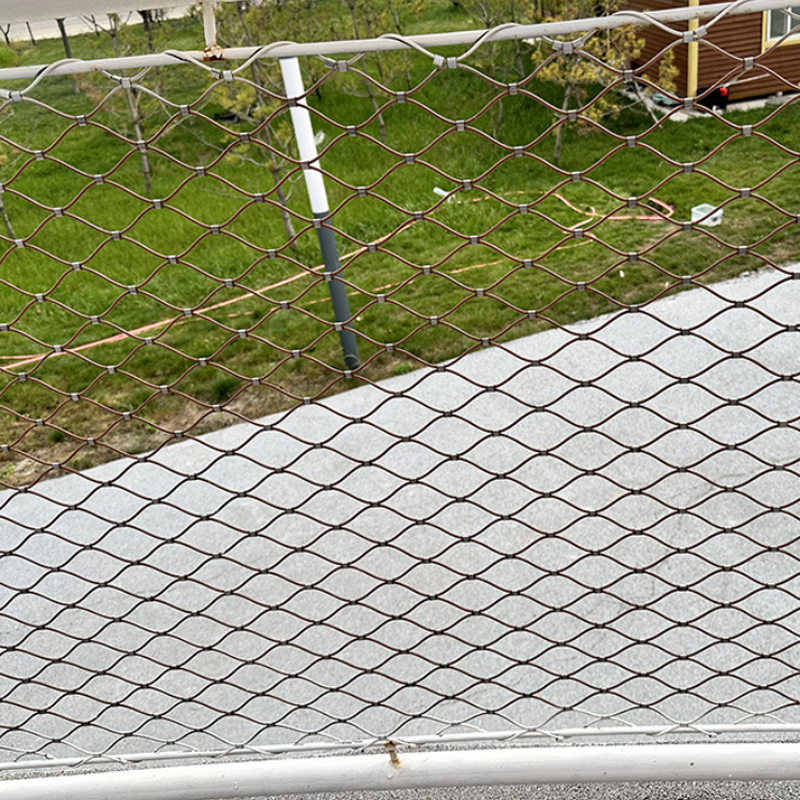

Finished diamond mesh style when it is stretched at 60 degree angle ;
Zoo Wire Mesh Specifications Sheet :
Hole Size (Opening) | 1.2MM(3/64) (7 x 7 ) | 1.6MM(1/16) (7 x 7 ) | 2.0MM(5/64) (7 x 7 ) | 2.4MM(3/32) (7 x 7 ) | 3.2MM(1/8) (7 x 19 ) |
| 20 x 35mm | YT-1235 | ||||
| 25 x 42mm | YT-1225 | YT-1625 | |||
| 30 x 52mm | YT-1230 | YT-1630 | YT-2030 | ||
| 35 x 60mm | YT-1235 | YT-1635 | YT-2035 | ||
| 38 x 66mm | YT-1238 | YT-1638 | YT-2038 | YT-2438 | |
| 40 x 69mm | YT-1240 | YT-1640 | YT-2040 | YT-2440 | YT-3040 |
| 50 x 86mm | YT-1250 | YT-1650 | YT-2050 | YT-2450 | YT-3050 |
| 60 x 104mm | YT-1260 | YT-1660 | YT-2060 | YT-2460 | YT-3060 |
| 70 x 120mm | YT-1270 | YT-1670 | YT-2070 | YT-2470 | YT-3070 |
| 76 x 131mm | YT-1276 | YT-1676 | YT-2076 | YT-2476 | YT-3076 |
| 80 x 138mm | YT-1280 | YT-1680 | YT-2080 | YT-2480 | YT-3080 |
| 90 x 154mm | YT-1290 | YT-1690 | YT-2090 | YT-2490 | YT-3090 |
| 100 x 173mm | YT-12100 | YT-16100 | YT-20100 | YT-24100 | YT-30100 |
| 120 x 206mm | YT-12120 | YT-16120 | YT-20120 | YT-24120 | YT-30120 |
1. Material of Stainless Steel Zoo Wire Mesh : Stainless steel 304,304L,316,306L etc.
| SS304 | (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035 |
| SS316 | (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5 |
| SS316L | (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0 |
Recommended Monkey Enclosure Zoo Wire Mesh:
| Material | Cable Diameter | Hole Size | Normal Break |
| SS304/316/316L | 3/32" (2.4MM) | 2.5" x 2.5" | 920 LBS |
| SS304/316/316L | 3/32" (2.4MM) | 2" x 2" | 920 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 2.5" x 2.5" | 676 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 2" x 2" | 676 LBS |
| SS304/316/316L | 1/8" (3.2MM) | 2" x 2" | 1600 LBS |
| SS304/316/316L | 1/8" (3.2MM) | 3" x 3" | 1600 LBS |
Stainless steel zoo wire is light, robust, and transparent. High-quality stainless steel cables and pressed ferrules are used for the production of the mesh and connected to a load-bearing and flexible structure. The curvature in the opposite direction of the stainless steel cables creates the exceptionally robust characteristics of the mesh can even stand up to heavy loads.
